Combine Flowcharts

Source: vignettes/articles/combine-flowcharts.Rmd
combine-flowcharts.Rmd

fc_merge() and fc_stack() allow you to combine different flowcharts horizontally or vertically. This is very useful when you need to combine flowcharts generated from different data.frames, as shown here.

Merge

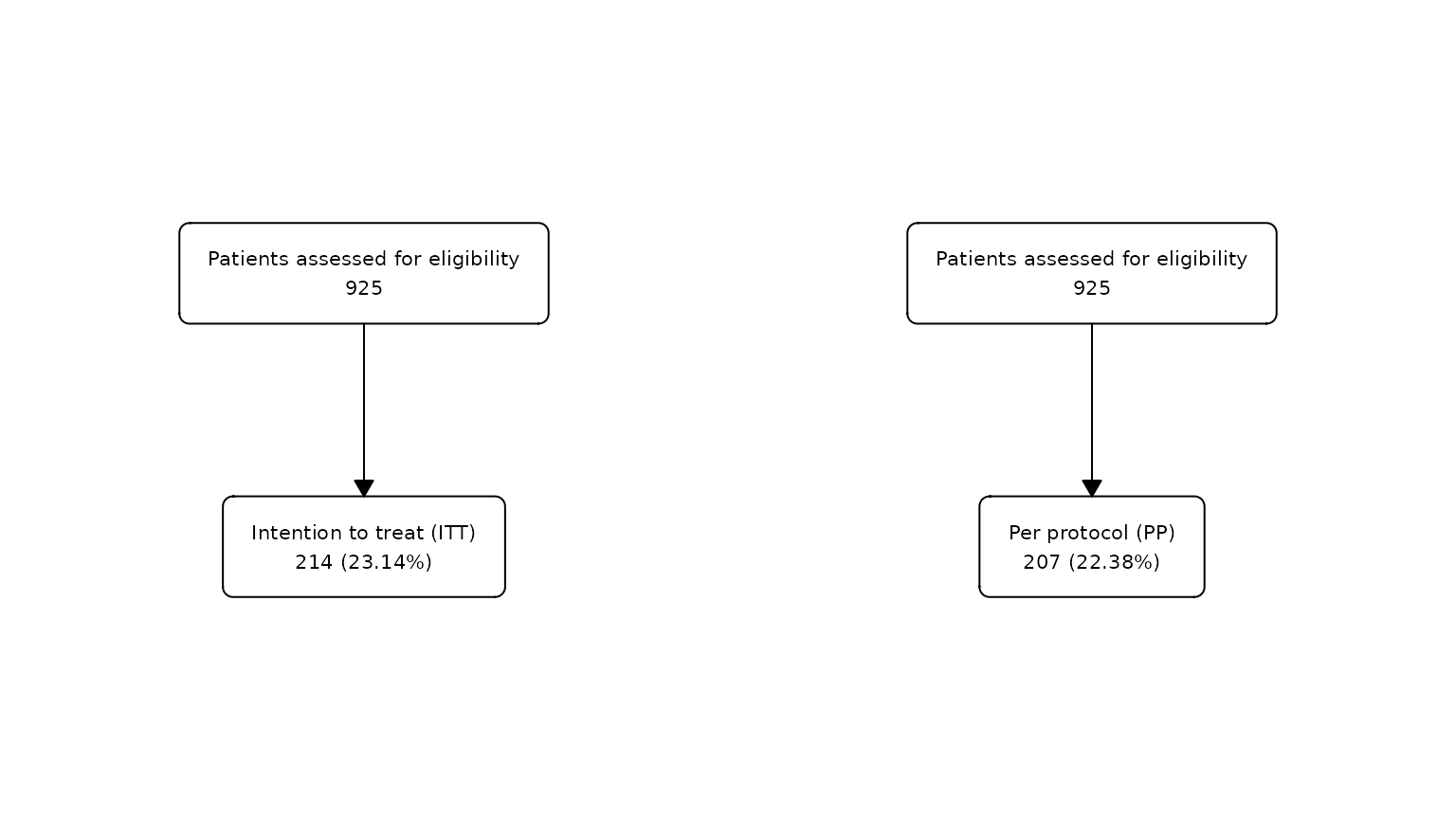

We can combine different flowcharts horizontally using fc_merge(). For example, we might want to represent the flow of patients included in the ITT population with the flow of patients included in the PP population.

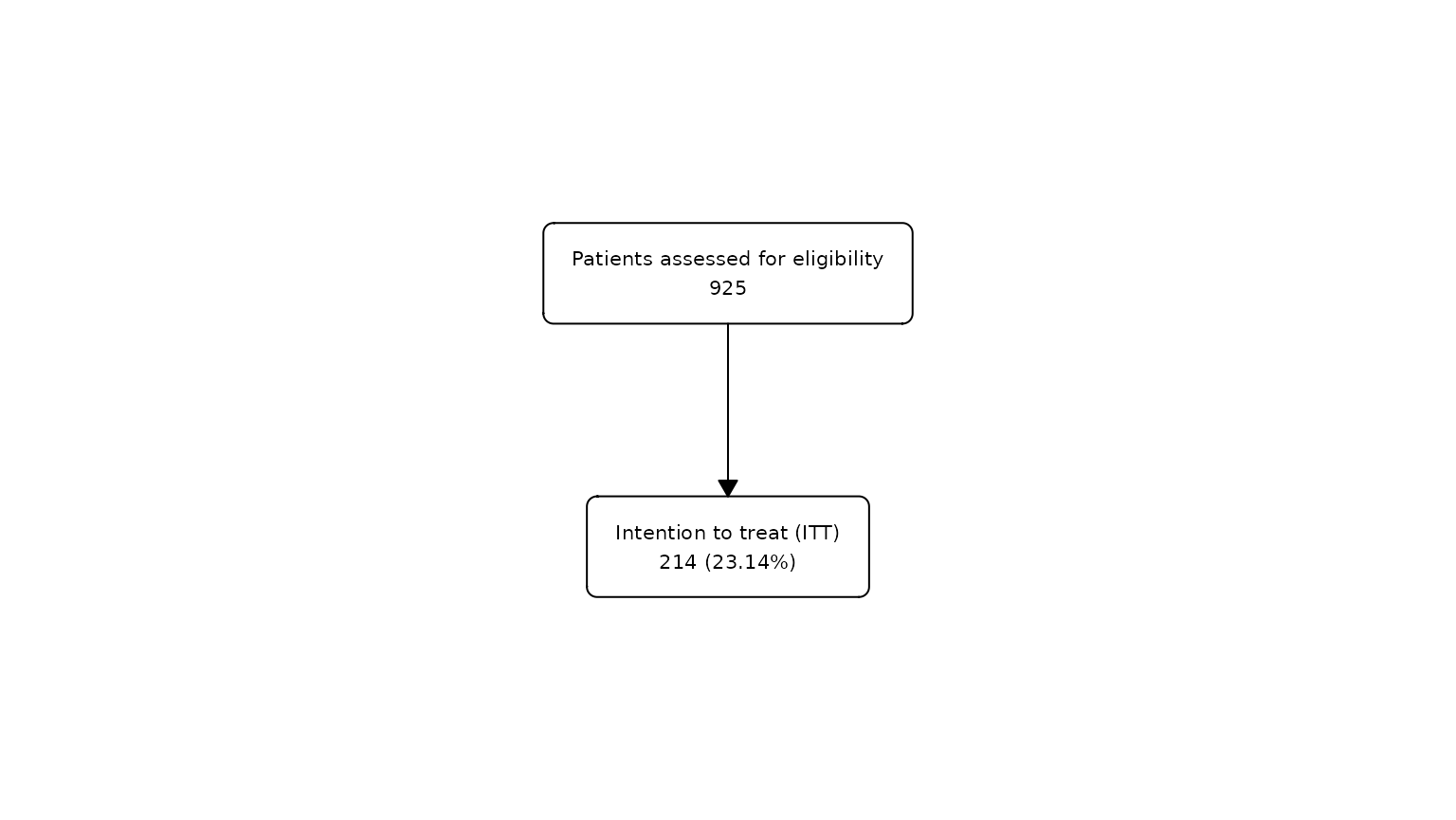

# Create first flowchart for ITT
fc1 <- safo |>
  as_fc(label = "Patients assessed for eligibility") |>
  fc_filter(itt == "Yes", label = "Intention to treat (ITT)")

fc_draw(fc1)

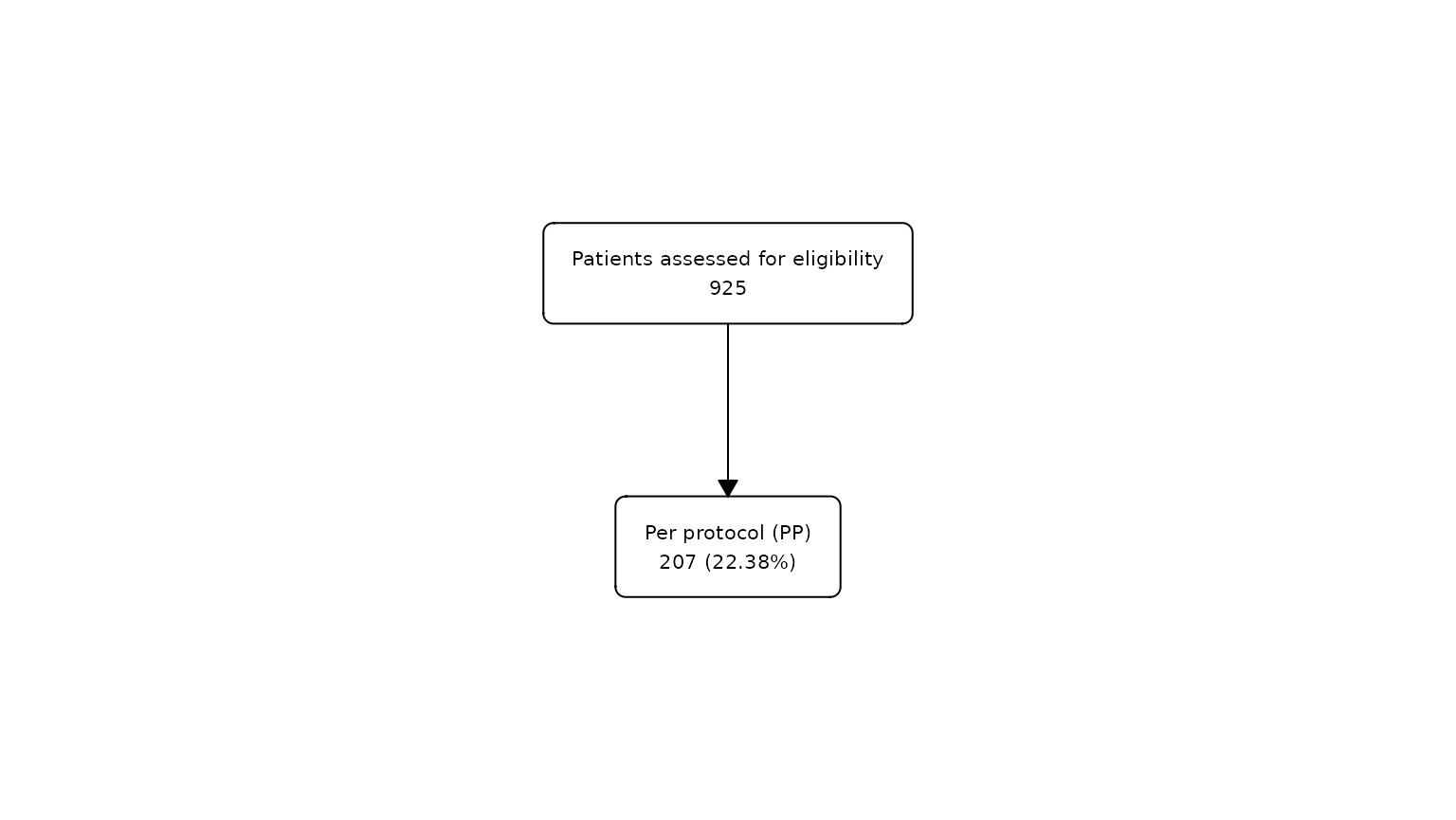

# Create second flowchart for visits
fc2 <- safo |>
  as_fc(label = "Patients assessed for eligibility") |>
  fc_filter(pp == "Yes", label = "Per protocol (PP)")

fc_draw(fc2)

list(fc1, fc2) |>
  fc_merge() |>
  fc_draw()

Stack

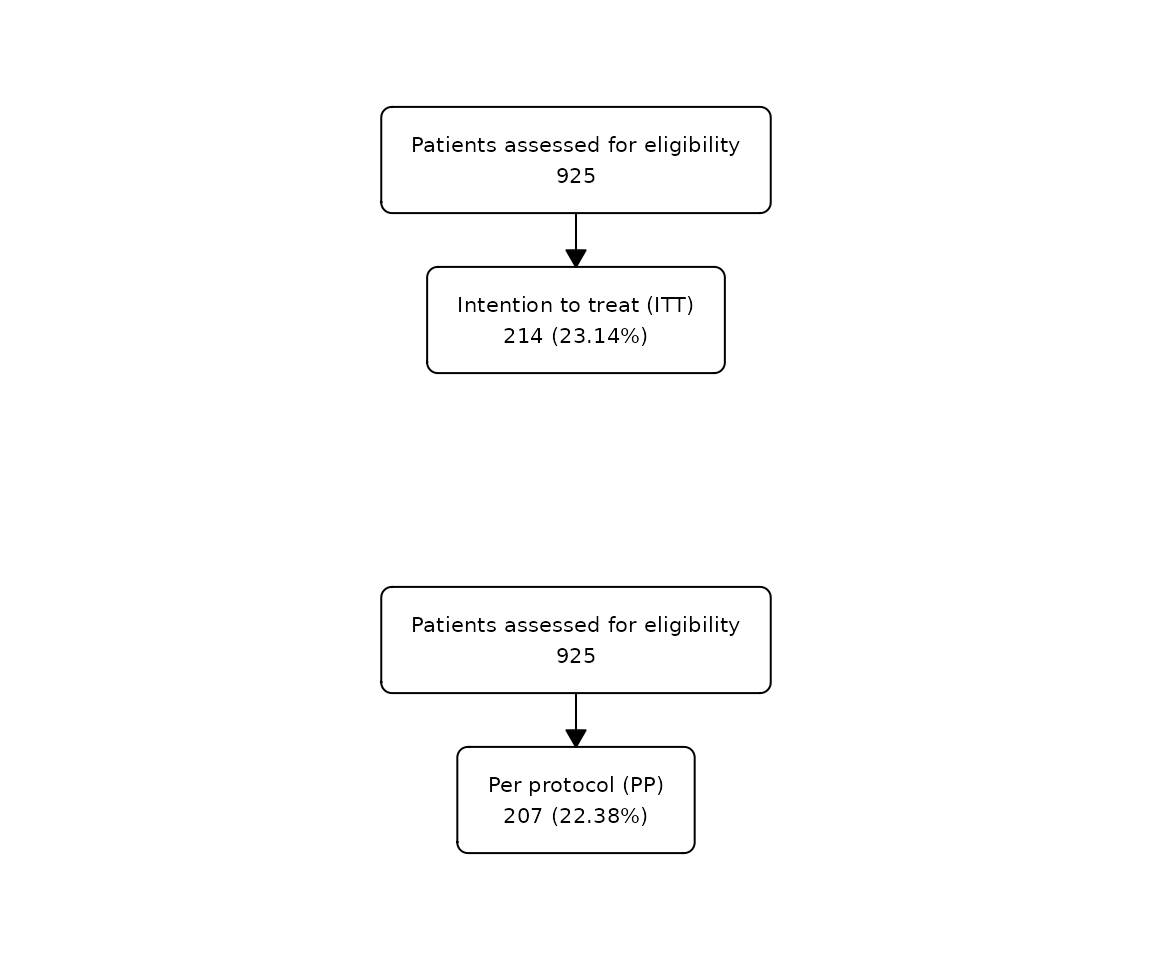

We can combine different flowcharts vertically using fc_stack(). For example, we can combine the same two flowcharts vertically instead of horizontally.

list(fc1, fc2) |>
  fc_stack() |>
  fc_draw()

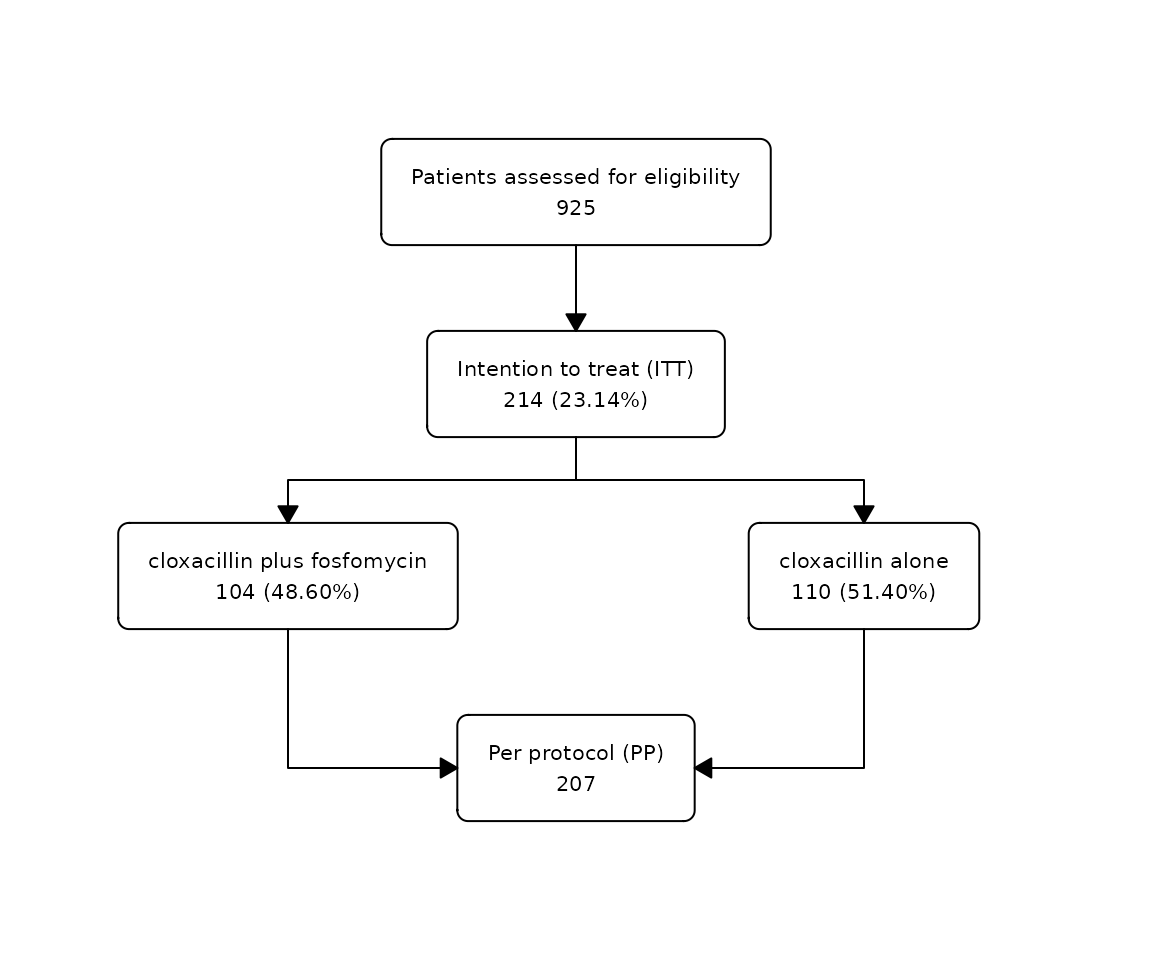

We can use the argument unite = TRUE to connect two stacked flowcharts. Two flowcharts can be merged only if they have the same boxes at the beginning and at the end, or if one of the flowcharts has one box at the beginning or at the end. For example:

fc1 <- safo |>
  as_fc(label = "Patients assessed for eligibility") |>
  fc_filter(itt == "Yes", label = "Intention to treat (ITT)")  |>
  fc_split(group)

fc2 <-  safo |>
  dplyr::filter(pp == "Yes") |>
  as_fc(label = "Per protocol (PP)")

list(fc1, fc2) |>
  fc_stack(unite = TRUE) |>
  fc_draw()

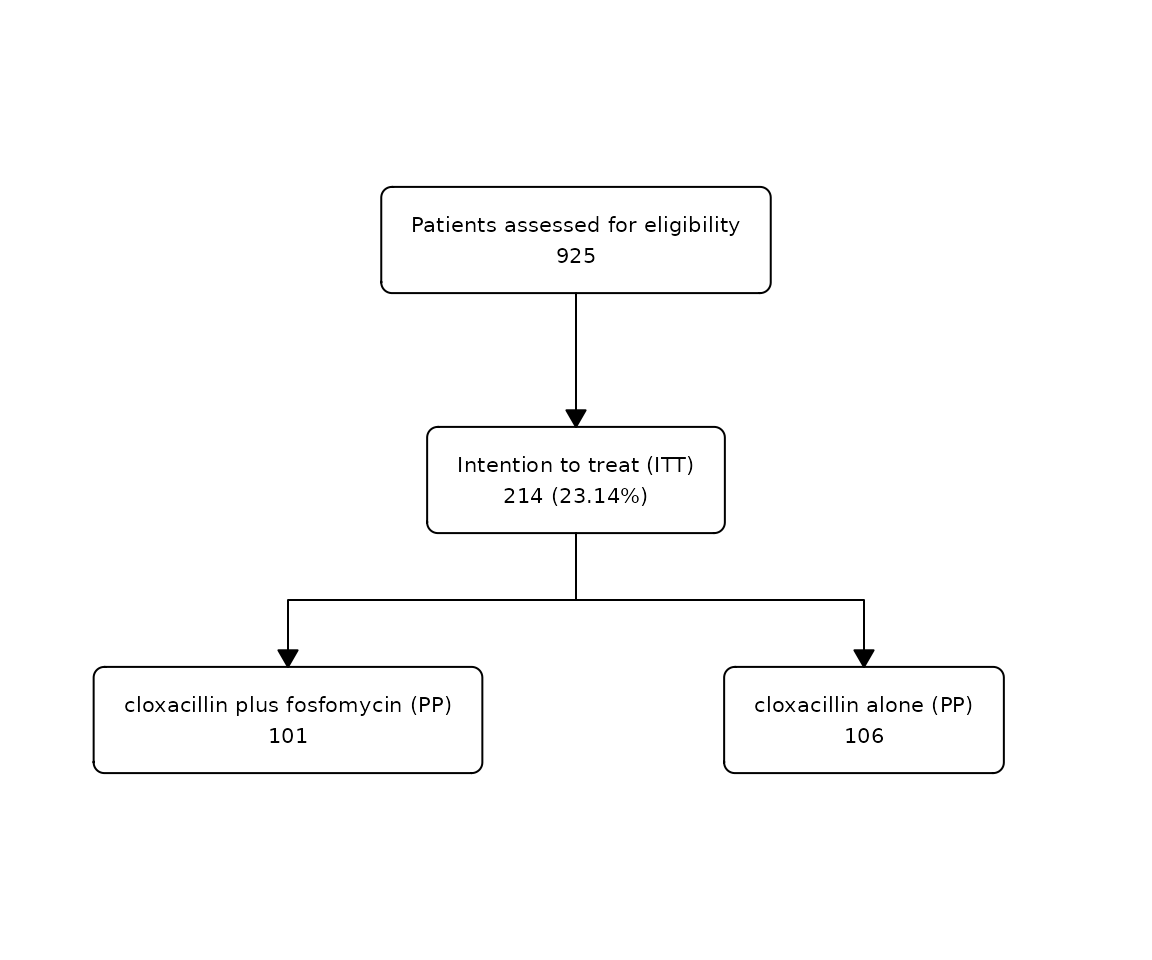

fc1 <- safo |>
  as_fc(label = "Patients assessed for eligibility") |>
  fc_filter(itt == "Yes", label = "Intention to treat (ITT)")

fc2 <-  safo |>
  dplyr::filter(pp == "Yes") |>
  as_fc(hide = TRUE) |>
  fc_split(group, label = c("cloxacillin plus fosfomycin (PP)", "cloxacillin alone (PP)"), text_pattern = "{label}\n{n}")

list(fc1, fc2) |>
  fc_stack(unite = TRUE) |>
  fc_draw()

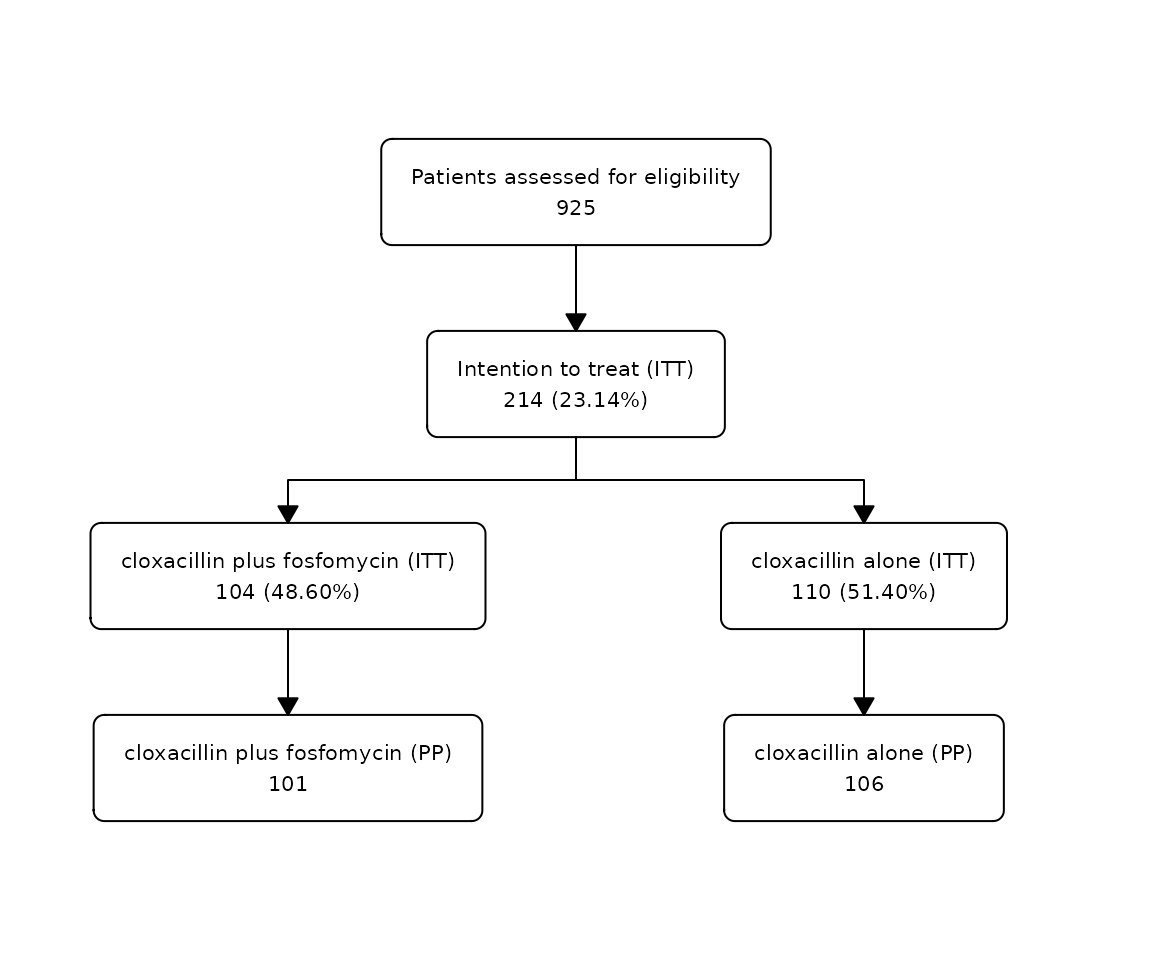

fc1 <- safo |>
  as_fc(label = "Patients assessed for eligibility") |>
  fc_filter(itt == "Yes", label = "Intention to treat (ITT)") |>
  fc_split(group, label = c("cloxacillin plus fosfomycin (ITT)", "cloxacillin alone (ITT)"))

fc2 <-  safo |>
  dplyr::filter(pp == "Yes") |>
  as_fc(hide = TRUE) |>
  fc_split(group, label = c("cloxacillin plus fosfomycin (PP)", "cloxacillin alone (PP)"), text_pattern = "{label}\n{n}")

list(fc1, fc2) |>
  fc_stack(unite = TRUE) |>
  fc_draw()
