This function allows you to change the appearance of all boxes of a flowchart at once.

Usage

fc_theme(
  object,
  text_pattern = NULL,
  text_pattern_init = NULL,
  text_pattern_exc = NULL,
  just = NULL,
  text_color = NULL,
  text_fs = NULL,
  text_fface = NULL,
  text_ffamily = NULL,
  text_padding = NULL,
  bg_fill = NULL,
  border_color = NULL,
  width = NULL,
  height = NULL,
  just_exc = NULL,
  text_color_exc = NULL,
  text_fs_exc = NULL,
  text_fface_exc = NULL,
  text_ffamily_exc = NULL,
  text_padding_exc = NULL,
  bg_fill_exc = NULL,
  border_color_exc = NULL,
  width_exc = NULL,
  height_exc = NULL,
  text_color_title = NULL,
  text_fs_title = NULL,
  text_fface_title = NULL,
  text_ffamily_title = NULL,
  text_padding_title = NULL,
  bg_fill_title = NULL,
  border_color_title = NULL,
  width_title = NULL,
  height_title = NULL
)

Arguments

object

fc object.

text_pattern

Text pattern for all the boxes, except the initial and exclusion ones.

text_pattern_init

Text pattern for the initial box.

text_pattern_exc

Text pattern for the exclusion box.

just

Justification for the text: "left", "center" or "right".

text_color

Color of the text. See the col parameter for gpar.

text_fs

Font size of the text. See the fontsize parameter for gpar.

text_fface

Font face of the text. See the fontface parameter for gpar.

text_ffamily

Changes the font family of the text. See the fontfamily parameter for gpar.

text_padding

Changes the text padding inside the box. This number has to be greater than 0.

bg_fill

Box background color. See the fill parameter for gpar.

border_color

Box border color. See the col parameter for gpar.

width

Width of the box. Must be an object of class unit or a number between 0 and 1.

height

Height of the box. Must be an object of class unit or a number between 0 and 1.

just_exc

Justification for the text of the exclude box: "left", "center" or "right".

text_color_exc

Color of the text of the exclude box. See text_color.

text_fs_exc

Font size of the text of the exclude box. See text_fs.

text_fface_exc

Font face of the text of the exclude box. See the fontface parameter for gpar. See text_fface.

text_ffamily_exc

Changes the font family of the text of the exclude box. See the fontfamily parameter for gpar. See text_ffamily.

text_padding_exc

Changes the text padding inside the exclude box. This number has to be greater than 0.

bg_fill_exc

Exclude box background color. See bg_fill.

border_color_exc

Box background color of the exclude box. See border_color.

width_exc

Width of the exclude box. Must be an object of class unit or a number between 0 and 1.

height_exc

Height of the box. Must be an object of class unit or a number between 0 and 1.

text_color_title

Color of the title text.

text_fs_title

Font size of the title text.

text_fface_title

Font face of the title text. See the fontface parameter for gpar.

text_ffamily_title

Changes the font family of the title text. See the fontfamily parameter for gpar.

text_padding_title

Changes the title text padding inside the box. This number has to be greater than 0.

bg_fill_title

Title box background color.

border_color_title

Title box border color.

width_title

Width of the title box. Must be an object of class unit or a number between 0 and 1.

height_title

Height of the title box. Must be an object of class unit or a number between 0 and 1.

Value

List with the dataset and the flowchart parameters with their modifications.

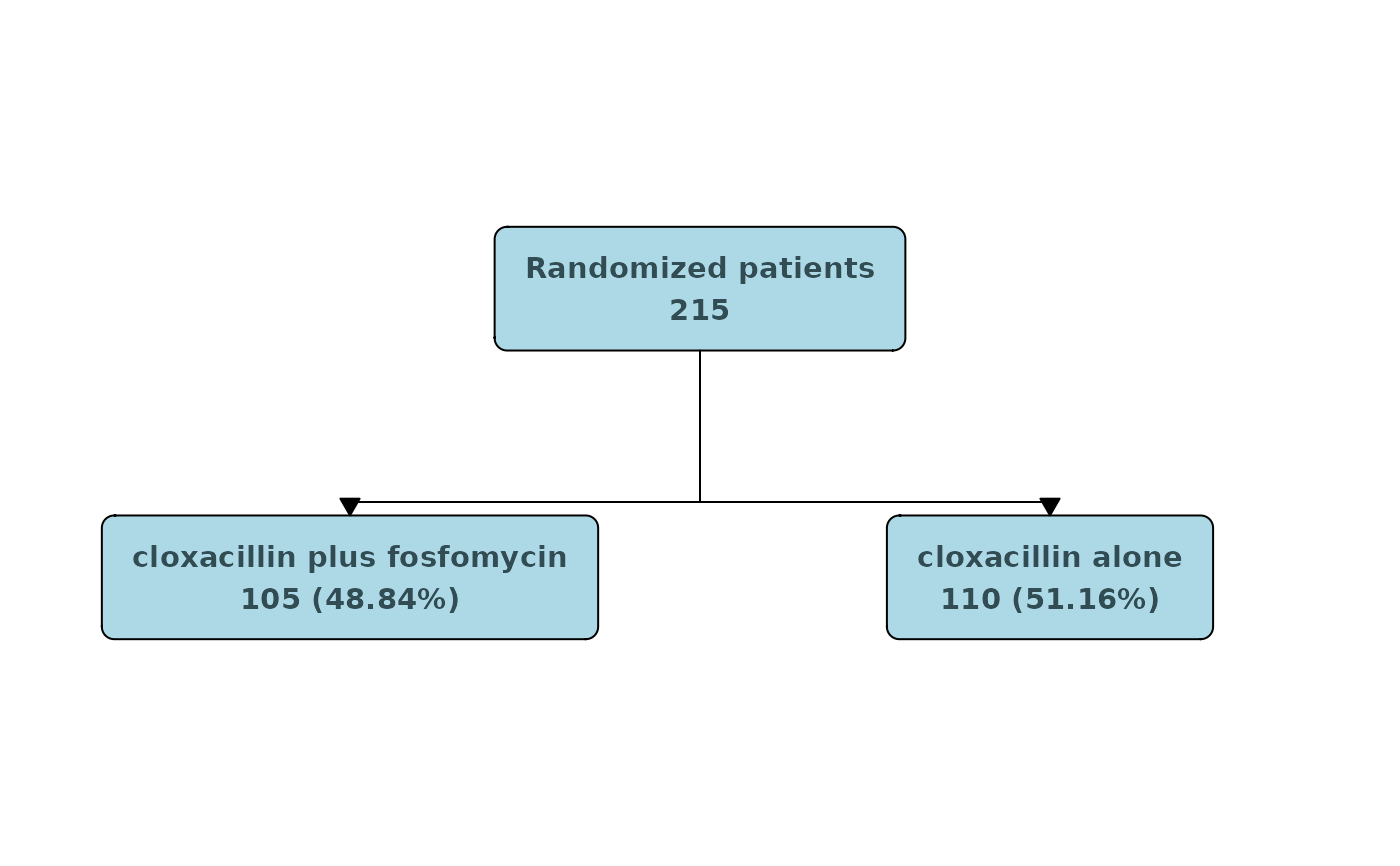

Examples

safo |>
  dplyr::filter(!is.na(group)) |>
  as_fc(label = "Randomized patients") |>
  fc_split(group) |>
  fc_theme(text_fs = 11, text_color = "#324C54", text_fface = 2, bg_fill = "#ADD8E6") |>
  fc_draw()
